High & Medium Pressure Devices

The mid-pressure polysulfone, PVC or acrylic (to 100psi) and high-pressure stainless steel (to 300psi) TACT Tools are suitable for field installations or laboratory analysis using 100mm² biostuds. Medium pressure TACT Tools may be customized to accommodate specific inlet/outlet port configurations and biostud arrays.

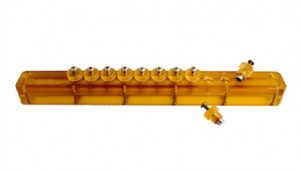

Medium Pressure TACT Tools

• MPMR-10PMMA 10-port Acrylic (transparent and non-autoclavable)
• MPMR-10PVC  10-port Polyvinylchloride (opaque and non-autoclavable)
• MPMR-10PSF  10-port Polysulfone (transparent and autoclavable)

High Pressure TACT Tools

• HPMR-10SS 10-port Stainless Steel (opaque and autoclavable)
• HPMR-24SS 24-port Stainless Steel (opaque and autoclavable)

Downloads

An alternative design for the medium- and high-pressure manifolds is represented by the MPMR-CB series devices, which feature a larger-bore (1” diameter) channel in a circular cross-section. This configuration is intended for in-line monitoring of water systems, with male 1″ NPT ends so that it can be spliced into a 1″ PVC or steel delivery line with no reduction in flow or pressure drops across the manifold.

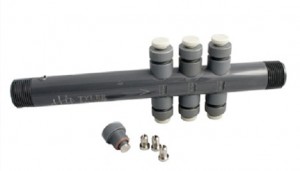

Circular Bore TACT Tools with 1″ NPT Connections

• MPMR-CB06PVC 6-port Polyvinylchloride medium pressure (opaque and non-autoclavable)
• MPMR-CB32PVC 32-port Polyvinylchloride medium pressure (opaque and non-autoclavable)
• HPMR-CB06SS 6-port Stainless Steel high pressure (opaque and autoclavable)
• HPMR-CB32SS 32-port Stainless Steel high pressure (opaque and autoclavable)

Downloads
